SPECIFICATIONS

Average Life (hrs): More Than 35000Hours

Brand Name: Xnbada

Certification: CCC,ce,FCC,ROHS,CE,RoHs

Choice: yes

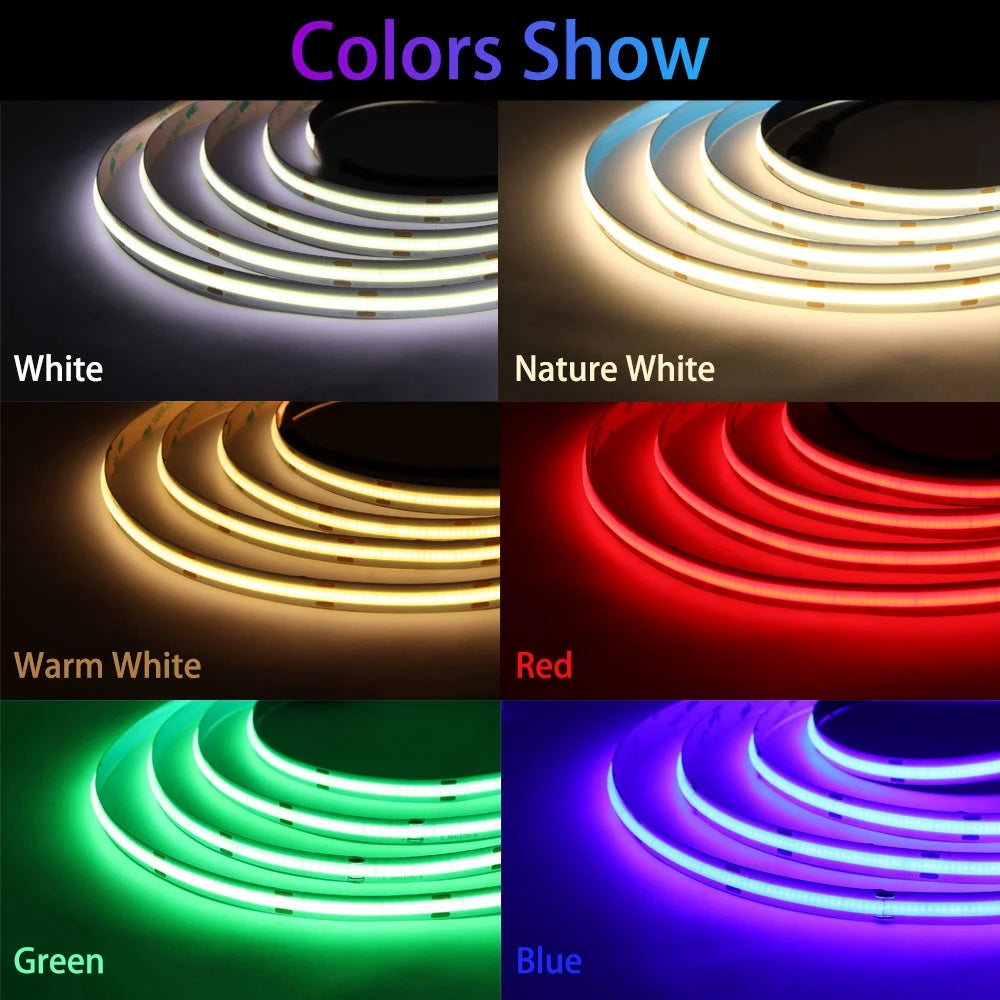

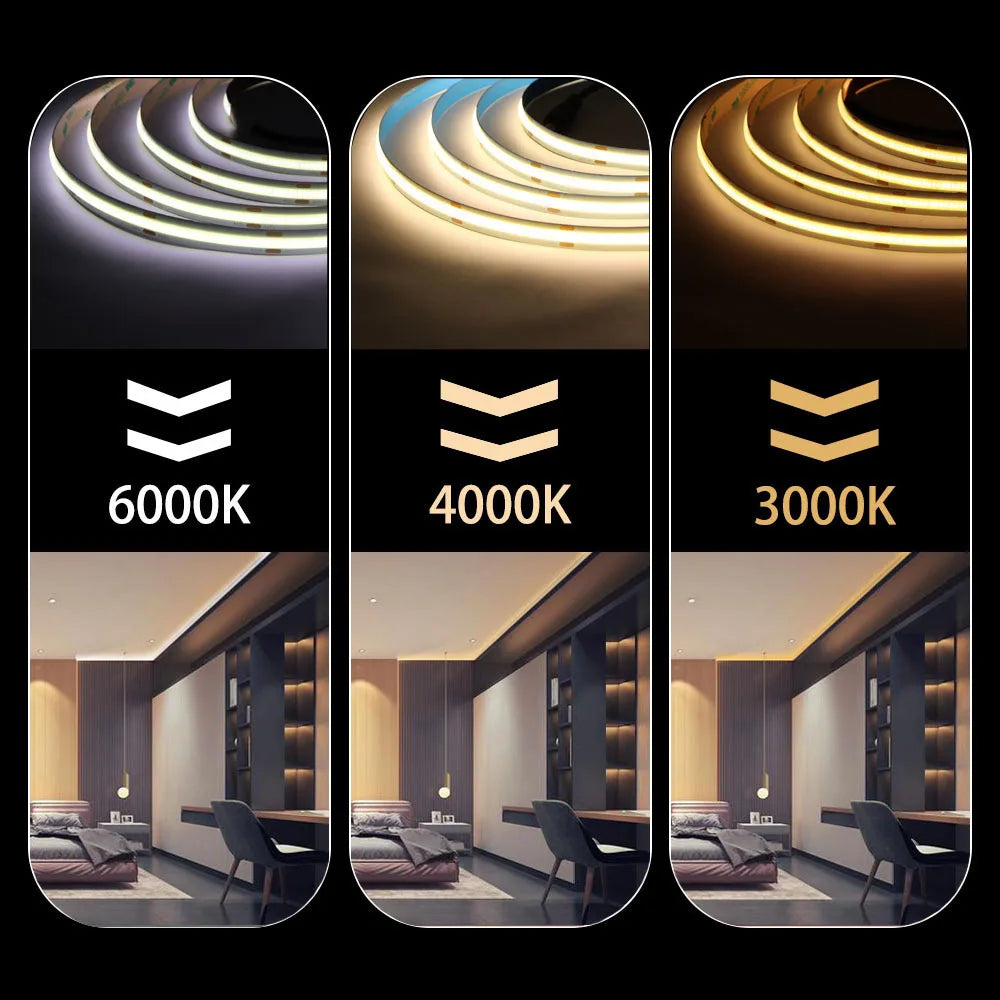

Color Temp(K): 3000K-6500K

High-concerned chemical: None

Is Batteries Included: No

Is Smart Device: No

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 480/582Leds

Luminous Flux: 249-2000

Model Number: COB/FOB

Nominal Voltage: 12V/24V

Occasion: LIVING ROOM

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 144

Strip type: SMD

Voltage: 12V/24V

Waterproof: No

semi_Choice: yes

Please Pay Attention:

1. The Price is Only LED Strip, Not Included Power Supply and LED Controller and Connectors.

2. This COB Must Use DC12V or DC24V LED Power Supply.

3. Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.

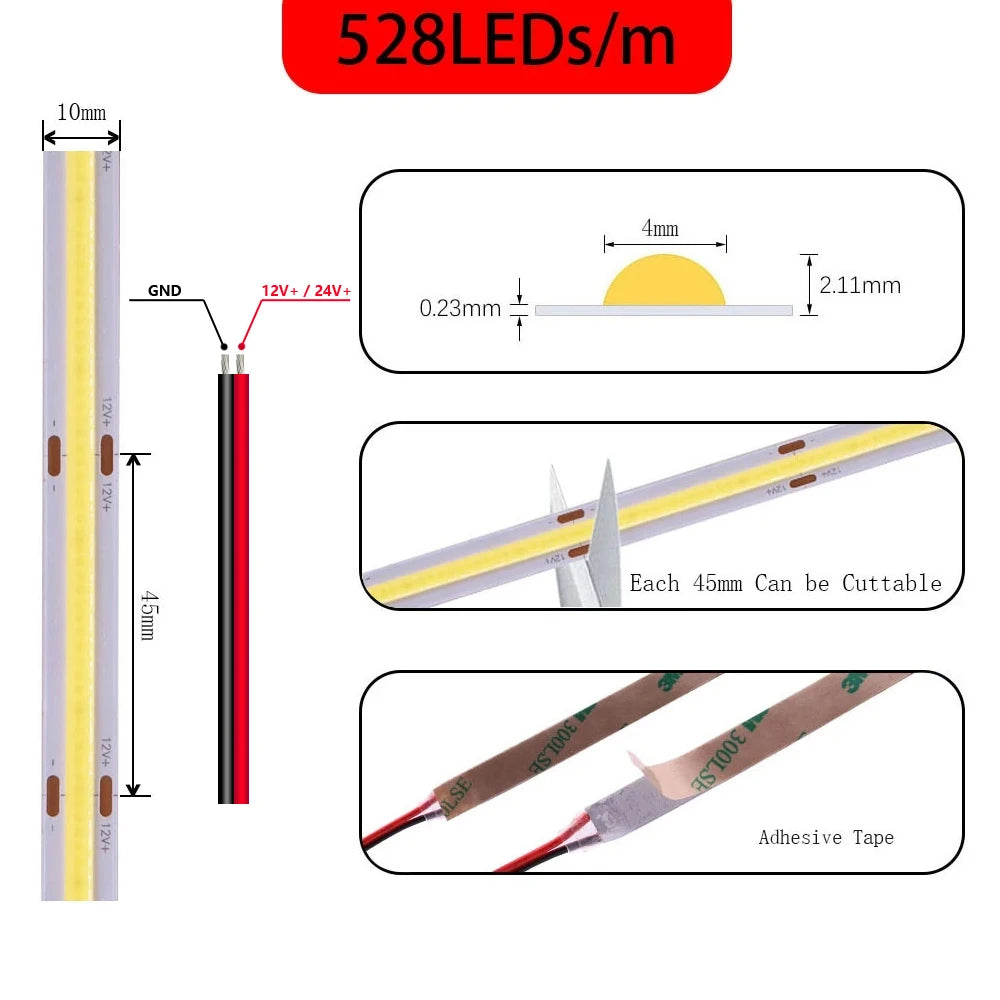

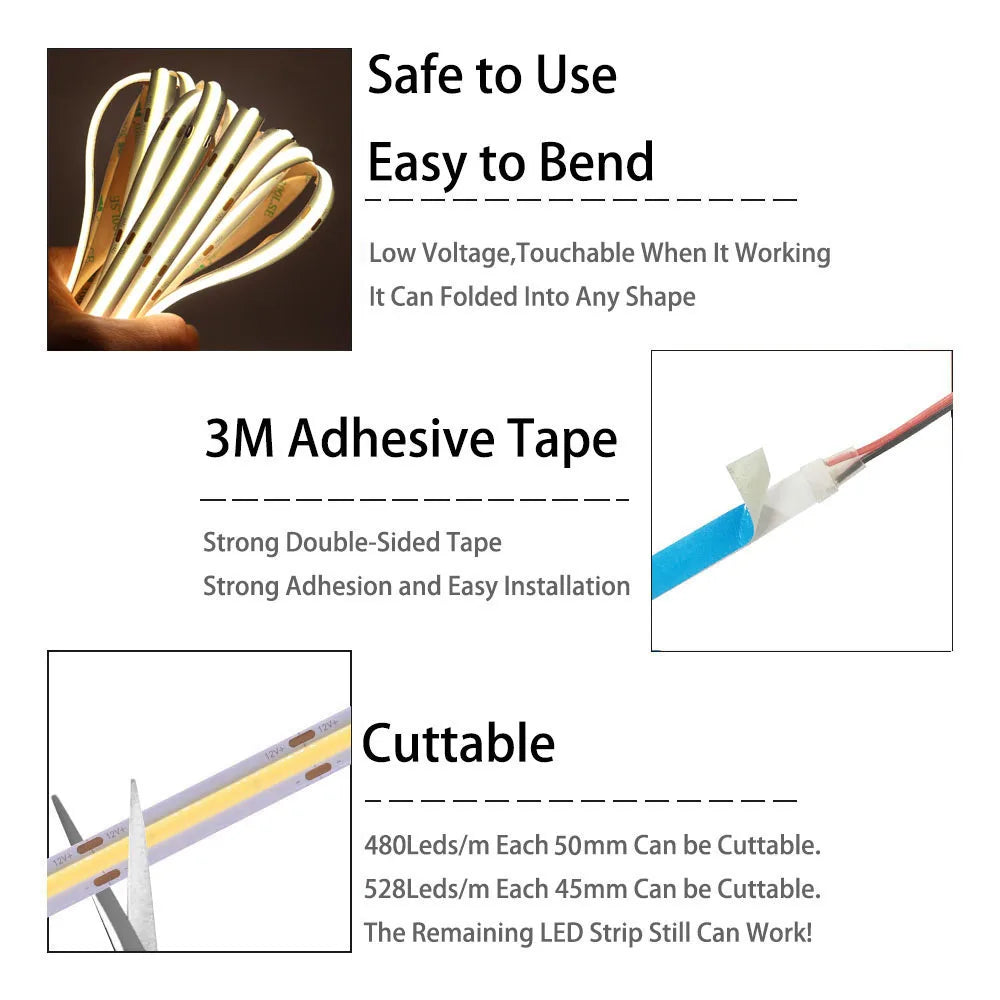

4. This COB LED Strip Can Be Cut at Each Shear Point To Create Custom Lengths, Do Not Bend LED Strip Sharply.

5. The 2Pin Wire Connectors of LED Strip Included: Red: V+, Black: V-. Connect the 2pin wire to the power supply is ok.

6. The LED Strip Has Adhesive Tape On The Back of PCB. Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.

7. Longer LED Strip Runs, Please Add More Power to 2 Pin Wire of Both Ends To Reduce Voltage Drop.

8. If the length of the COB light you choose is 0.5m/1m/2m, it will come with a 2Pin Wire Connectors, No 2Pin Wire Connectors at the other ends, please know.

9.Please do not Connect to 48V Or AC110-240V,It is Very dangerous.

10.This COB LED Strip Red Wire Connect to Power V+,Balck Wire Connect to Power V- , Please do not use led power and led controller 2in1,becuase 2in1 Power do not have V-,You can not light up the led strip.

How to Choose Power Supply?

First, Calculated The Whole LED Strip Lights Watts.

Theoretical Power, 480-9W/M, 528-14W/M, If You Buy 5m 528LEDs/m, So 14W/M*5m=70W.

Then, Choose the Right Power Supply.

If This LED Strip is Work with DC12V Power, So 70W / 12V = 5.8A ( At Least 6A or more ).

If you need led Power Supply Click Here (12VLED Strip Choose 12V Led Power; 24V LED Strip Choose 24V Led Power):
